TOMSYSTEM Sp. z o.o.

TMT WELDING WIRES – RECOMMENDED OWN BRAND OF TOMSYSTEM

To meet the increasingly higher expectations of the welding industry, Tomsystem has introduced the highest quality welding products of its own brand TMT, produced in Italy by experts with many years of experience (including welding wires). TMT products are a proven and recommended welding range that responds to the challenges of modern business.

Technical data adapted to individual orders.

TECHNICAL GASES, GAS FILLING PLANT

Get the highest quality technical gases at exceptional prices! We offer a wide range of gases: argon, carbon dioxide, oxygen, nitrogen and mixtures, ideal for welding and other industries! When you buy from us, you can be sure that you are receiving a product at a competitive price, without compromising on quality! The Tomsystem gas bottling plant is a place that guarantees the highest quality of gas products for various industries. We offer a wide range of technical gases, tailored to the individual needs of our customers. Thanks to modern technologies and an experienced team, we ensure not only quality, but also safety and reliability of deliveries.

Technical parameters depend on the type of gas cylinder.

COMPLETE ORBITAL WELDING SYSTEMS

Are you looking for an advanced welding solution that will provide you with excellent quality and repeatability of welds? We offer complete orbital welding systems from the manufacturer OWT GmbH & Co. KG, which are the perfect answer to your needs! These are modern devices that combine the highest precision with reliability, adapted to the most demanding applications in various industries. Complete orbital welding systems are advanced technologies used in precision welding processes, especially in the energy, chemical, aviation and maritime industries. Orbital welding is a technique in which the electrode moves along a closed trajectory, resulting in a weld of exceptional quality and consistency. The offered orbital welding systems consist of several key elements that together ensure full control over the welding process and the highest precision.

Technical parameters selected depending on customer needs.

TECHNOLOGY LINES, ROBOTIC STATIONS, TECHNOLOGY SELECTION

Some of the advantages of implementing automation and robotization are optimizing the consumption of welding materials, increasing control over the quality of the final result and reducing costs related to ensuring work safety. Welding robots are gaining more and more popularity in the industry due to the precision and aesthetics of their welding results. We are experts in providing modern welding technologies. We design and produce solutions based on robotic and traditional stations, enabling TIG and MIG/MAG welding processes. In addition to the wide range of stock available in our store (including innovative industrial / welding robots - Universal Robots, Fanuc, Yaskawa), we offer professional consulting, technical support and application implementation.

Technical data adapted to individual orders.

MODERN WELDING HELMETS BY THE SPANISH BRAND DACAR

Innovative welding helmets by DACAR - a perfect combination of exceptional protection, comfort and modern functionality. DACAR is a recognized Spanish manufacturer of high-quality occupational health and safety products, offering solutions that meet real market needs. DACAR products ensure maximum safety without sacrificing maximum user comfort. The main goal of the DACAR brand is innovation, which is why all welding helmets and other personal protective equipment benefit from innovation and continuous development of technology. The extensive range of DACAR products ensures maximum protection for employees and their environment.

Technical data adapted to individual orders.

PROFESSIONAL SOLDAMATIC WELDING SIMULATOR - AUGMENTED REALITY

Soldamatic is the first educational welding simulator that enables virtual learning with all the elements used in real workshops. Virtual welding perfectly reflects the real process, enabling detailed knowledge of welding methods. The simulator uses advanced computer simulation techniques to create conditions most similar to the real welding environment. This innovative device, based on virtual reality, allows you to experience "on your own skin" what the entire manual welding process looks like. The Soldamatic welding simulator is the perfect tool to train future skilled welders in an efficient and sustainable way. It has a unique training system and program as well as a wide selection of welding techniques and positions, giving the opportunity to analyze mistakes made.

Technical data adapted to individual orders.

MIG/MAG EWM WELDING MACHINE PHOENIX XQ 350 PULS CW HP 090-005647-00001

MIG/MAG inverter welding machine, pulse, with integrated wire feeder. Perfect MIG/MAG weld seams even with long welding leads. Synergic control with one-knob operation. No need to purchase additional characteristics – all characteristics for this machine type are included in the scope of delivery ex works. With innovative EWM Synergic characteristics rootArc® XQ/rootArc® puls XQ, forceArc® XQ/forceArc® puls XQ, pulse/superPuls and Positionweld for aluminium. With Synergic characteristics for GMAW standard or pulsed welding for steel/CrNi/aluminium. Non Synergic operation for manual setting of welding parameters. Suitable for MMA welding, TIG welding and gouging. Individually configurable programmes for each welding task (JOB). Powerful, high-precision EWM eFeed 4-roll wire feeder to reliably feed all solid and flux cored wires. Adjustable start and end-crater functions. Infinitely adjust

Version: Phoenix XQ 350
Setting range for welding current: 5 A - 350 A
Duty cycle 40 °C: 350 A / 80 %, 320 A / 100 %
Open circuit voltage: 82 V
Mains voltage: 3 x 400 V
Tolerances: -25 % up to +20 %
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 18.8 kVA
Wire feed speed: 0.5 m/min - 25 m/min, 19.685 ipm - 984.253 ipm
Factory-installed roll equipment: 1,0-1,2 mm UNI / Steel
Spool diameter: D200/D300
Torch connection: Euro torch connector
Cooling capacity at 1 l/min.: 1000 W
Pump pressure: 3.5 bar
Tank capacity: 8 l
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 1150 mm x 678 mm x 972 mm, 45.3 inch x 26.7 inch x 38.3 inch
Weight: 128 kg, 282.2 lbs
Standards: IEC 60974-1, -2, -5 and -10 CL.A

MIG/MAG EWM WELDING MACHINE PHOENIX XQ 400 PULS DW 090-005644-00001

MIG/MAG inverter welding machine, pulse, with separate wire feeder. Perfect MIG/MAG weld seams even with long welding leads. Synergic control with one-knob operation. No need to purchase additional characteristics – all characteristics for this machine type are included in the scope of delivery ex works. With innovative EWM Synergic characteristics rootArc® XQ/rootArc® puls XQ, forceArc® XQ/forceArc® puls XQ, pulse/superPuls and Positionweld for aluminium. With Synergic characteristics for GMAW standard or pulsed welding for steel/CrNi/aluminium. Non Synergic operation for manual setting of welding parameters. Suitable for MMA welding, TIG welding and gouging. Individually configurable programmes for each welding task (JOB). Adjustable start and end-crater functions. Infinitely adjustable arc dynamics (choke effect).

Setting range for welding current: 5 A - 400 A
Duty cycle 40 °C: 400 A / 80 %, 370 A / 100 %
Open circuit voltage: 82 V
Mains voltage: 3 x 400 V
Tolerances: -25 % up to +20 %
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 23.2 kVA
Wire feed speed: 0.5 m/min - 25 m/min, 19.685 ipm - 984.253 ipm
Cooling capacity at 1 l/min.: 1000 W
Pump pressure: 3.5 bar
Tank capacity: 8 l
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 1150 mm x 678 mm x 972 mm, 45.3 inch x 26.7 inch x 38.3 inch
Weight: 125.5 kg, 276.7 lbs
Standards: IEC 60974-1, -2 and -10 CL.A

MIG/MAG EWM WELDING MACHINE PICOMIG 355 PULS TKM 090-005542-00502

Multiprocess inverter welding machine, pulse, with easy, one-knob operation and integrated wire feeder. GMAW pulsed welding and GMAW standard welding. Significantly less spatter formation and therefore less finishing work, all thanks to the pulse function. GMAW pulse welding of aluminium and aluminium alloys. EWM forceArc/forceArc puls characteristics for unalloyed steel. EWM rootArc/rootArc puls characteristics for unalloyed steel. Characteristics for steel, CrNi, CuSi, aluminium and flux cored wires. MMA welding and TIG lift arc welding. Perfect for welding self-shielding flux cored wires. Infinitely adjustable arc dynamics (choke effect). Non-latched/latched operation. Interval welding. Adjustable gas pre- and post-flow time. EWM Xnet also available via Xnet LAN/Wi-Fi Gateway.

Version: Picomig 355 puls
Setting range for welding current: 5 A - 350 A
Duty cycle 40 °C: 350 A / 40 %, 300 A / 60 %, 270 A / 100 %
Open circuit voltage: 79 V
Mains voltage: 3 x 400 V
Tolerances: -25 % up to +20 %
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 18.8 kVA
Wire feed speed: 0.5 m/min - 25 m/min, 19.68 ipm - 944.88 ipm
Factory-installed roll equipment: 1,0-1,2 mm UNI / Steel
Spool diameter: D200/D300
Torch connection: Euro torch connector
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 636 mm x 298 mm x 482 mm, 25 inch x 11.7 inch x 19 inch
Weight: 34.4 kg, 75.9 lbs
Standards: IEC 60974-1, -5 and -10 CL.A

EWM WELDING MACHINE PICOTIG 200 AC/DC PULS 5P TG 090-000188-00502

Modular AC/DC TIG inverter welding machine, gas- or water-cooled. Electronic HF start. TIG lift arc welding. Adjustable AC waveform, sine, trapezoidal, square current. Adjustable AC frequency between 50 Hz and 200 Hz. Adjustable AC balance. TIG and MMA pulse function. Non-latched/latched operation. Reduced secondary current accessible using torch trigger. Adjustable up-slope and down-slope time. Adjustable gas pre- and post-flow time. MMA welding. Adjustable hot start current and hot start time. Adjustable Arcforce. Antistick function. Gas-cooled or optionally water-cooled with cool 40 U31 cooling unit. Energy-saving thanks to high efficiency and standby function. Portable, including shoulder strap. 3.5 m mains supply lead with 16 A shock-proof plug. Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage.

Version: Picotig 200
Setting range for welding current: 3 A - 200 A
Duty cycle 40 °C: 200 A / 35 %, 150 A / 60 %, 140 A / 100 %
Open circuit voltage: 43 V
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 8.1 kVA
Power consumption Pi: 24 W
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 21.2 inch x 8.3 inch x 16.3 inch
Weight: 36.4 lbs
Standards: IEC 60974-1, -3 and -10 CL.A

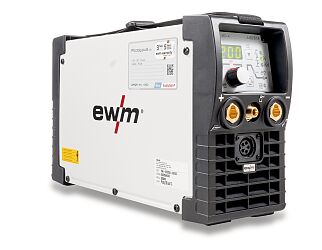

EWM WELDING MACHINE PICOTIG 200 PULS TG 090-002058-00502

Gas-cooled DC TIG inverter welding machine. TIG welding. Electronic HF start. TIG lift arc welding. MMA pulse welding and pulsed TIG welding up to 2 kHz. Non-latched/latched operation. Reduced secondary current accessible using torch trigger. Adjustable up-slope and down-slope time. Adjustable gas pre- and post-flow time. MMA welding. Adjustable hot start current and hot start time. Adjustable Arcforce. Antistick function. Energy-saving thanks to high efficiency and standby function. Portable, including shoulder strap. 3.5 m mains supply lead with 16 A shock-proof plug. 3.5 m mains lead with 16 A earthed plug. Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage.

Version: Picotig 200
Setting range for welding current: 5 A - 200 A
Duty cycle 40 °C: 200 A / 25 %, 150 A / 60 %, 140 A / 100 %
Open circuit voltage: 90 V
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 8.1 kVA
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 16.9 inch x 5.4 inch x 9.9 inch
Weight: 17.6 lbs
Standards: IEC 60974-1, -3 and -10 CL.A

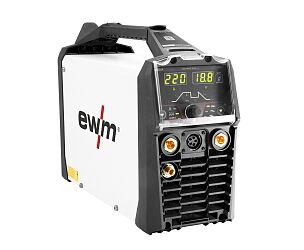

EWM WELDING MACHINE PICOTIG 220 PULS DC 5P 090-002068-00502

TIG DC inverter welding machine, portable, gas-cooled, 5-pole, with PFC module. High-efficiency current draw thanks to integrated PFC (Power Factor Correction) technology. TIG DC and TIG pulse. Non-latched/latched operation, spotmatic and spotArc®, MMA, MMA pulse, MMA cel, MMA cel pulse. Robust housing with impact-resistant plastic cover. 5-pole, digital welding torch connection with X technology allows users to connect Retox XQ welding torches. Comfort 3.0 mini control with two easy-to-read 7-segment displays for simple and fast selection of the most important parameters. Splash-proof in line with IP23. Temperature- and speed-controlled cooling fan – reduced contamination and less noise emissions as fan only runs when needed. Generator-compatible, even with long mains leads. High mains voltage tolerance. Consumables box in the handle – consumables always safely stored and within reach.

Version: Picotig 220 puls DC 5P
Setting range for welding current: 5 A - 220 A
Duty cycle 40 °C: 220 A / 40 %, 190 A / 60 %, 160 A / 100 %
Open circuit voltage: 97 V
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 6.6 kVA
Power consumption Pi: 22 W
Protection classification: IP23
Dimensions (L x B x H): 17.9 inch x 6.5 inch x 12.6 inch
Weight: 22.1 lbs
Standards: IEC 60974-1, -3 and -10 CL.A

MIG/MAG EWM WELDING MACHINE TAURUS XQ 400 SYNERGIC DW 090-005650-00001

MIG/MAG inverter welding machine with separate wire feeder. Perfect MIG/MAG weld seams even with long welding leads. Synergic control with one-knob operation. No need to purchase additional characteristics – all characteristics for this machine type are included in the scope of delivery ex works. With the innovative EWM Synergic characteristics rootArc® XQ, forceArc® XQ and superPuls. With Synergic characteristics for GMAW standard welding for steel/CrNi/aluminium. Non Synergic operation for manual setting of welding parameters. Suitable for MMA welding, TIG welding and gouging. Individually configurable programmes for each welding task (JOB). Adjustable start and end-crater functions. Infinitely adjustable arc dynamics (choke effect).

Setting range for welding current: 5 A - 400 A
Duty cycle 40 °C: 400 A / 80 %, 370 A / 100 %
Open circuit voltage: 82 V
Mains voltage: 3 x 400 V
Tolerances: -25 % up to +20 %
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 23.2 kVA
Wire feed speed: 0.5 m/min - 25 m/min, 19.685 ipm - 984.253 ipm
Cooling capacity at 1 l/min.: 1000 W
Pump pressure: 3.5 bar
Tank capacity: 8 l
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 1150 mm x 678 mm x 972 mm, 45.3 inch x 26.7 inch x 38.3 inch
Weight: 125.5 kg, 276.7 lbs
Standards: IEC 60974-1, -2 and -10 CL.A

TIG EWM WELDING MACHINE TETRIX XQ 230 PULS AC/DC EXPERT 3.0 5P 090-005631-00002)

Modular AC/DC TIG inverter welding machine of the latest generation. TIG AC/DC, TIG DC and TIG pulse, activArc® and spotArc®, MMA, MMA pulse, MMA cel, MMA cel pulse. Robust housing with impact-resistant plastic cover. Provided ex works ready for water block connection – guarantees ultimate flexibility in industry and trade. Splash-proof in line with IP23. Temperature- and speed-controlled cooling fan – reduced contamination and less noise emissions as fan only runs when needed. Generator-compatible, even with long mains leads. High mains voltage tolerance. Consumables box in the handle – consumables always safely stored and within reach. LED status bar indicates the current operating status with colours. Optional network connectivity with ewm Xnet software via LAN or WiFi Gateway. 3.5 m mains lead with 16 A earthed plug.

Setting range for welding current: 3 A - 230 A
Duty cycle 40 °C: 230 A / 40 %, 200 A / 60 %, 170 A / 100 %
Open circuit voltage: 96 V
Mains voltage: 1 x 230 V
Tolerances: -40 % up to +15 %
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 7.4 kVA
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 550 mm x 224 mm x 415 mm, 21.7 inch x 8.8 inch x 16.3 inch
Weight: 19.2 kg, 42.3 lbs
Standards: IEC 60974-1, -3 and -10 CL.A


EWM WELDING MACHINE TETRIX XQ 300 PULS AC/DC EXPERT 3.0 5P 090-005691-00002

Modular AC/DC TIG inverter welding machine of the latest generation. TIG AC/DC, TIG DC and TIG pulse. activArc® and spotArc®. MMA, MMA pulse, MMA cel, MMA cel pulse. Robust housing with impact-resistant plastic cover. Provided ex works ready for water block connection – guarantees ultimate flexibility in industry and trade. Splash-proof in line with IP23. Temperature- and speed-controlled cooling fan – reduced contamination and less noise emissions as fan only runs when needed. Generator-compatible, even with long mains leads. High mains voltage tolerance. Consumables box in the handle – consumables always safely stored and within reach.

Version: Tetrix XQ 300 puls AC/DC Expert 3.0 5POL
Setting range for welding current: 3 A - 300 A
Duty cycle 40 °C: 300 A / 40 %, 270 A / 60 %, 220 A / 100 %
Open circuit voltage: 87 V
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 15.9 kVA
Power consumption Pi: 24 W
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 21.7 inch x 10.1 inch x 16.3 inch
Weight: 48.5 lbs
Standards: IEC 60974-1, -3 and -10 CL.A


EWM WELDING MACHINE TETRIX XQ 300 PULS DC COMFORT 3.0 5P 090-005692-00001

Modular DC TIG inverter welding machine of the latest generation. TIG DC and TIG pulse. activArc® and spotArc®. MMA, MMA pulse, MMA cel, MMA cel pulse. Tried-and-tested Comfort 3.0 control with two easy-to-read 7-segment displays for simple and fast selection of the most important parameters. Robust housing with impact-resistant plastic cover. Provided ex works ready for water block connection – guarantees ultimate flexibility in industry and trade. Splash-proof in line with IP23. Temperature- and speed-controlled cooling fan – reduced contamination and less noise emissions as fan only runs when needed. Generator-compatible, even with long mains leads. High mains voltage tolerance.

Version: Tetrix XQ 300 puls DC Comfort 3.0 5POL
Setting range for welding current: 3 A - 300 A
Duty cycle 40 °C: 300 A / 40 %, 270 A / 60 %, 220 A / 100 %
Open circuit voltage: 87 V
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 15.3 kVA
Power consumption Pi: 21 W
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 21.7 inch x 10.1 inch x 16.3 inch
Weight: 45.2 lbs
Standards: IEC 60974-1, -3 and -10 CL.A


TIG EWM WELDING MACHINE TETRIX XQ 350 PULS AC/DC W EX 5P 090-005674-00002

TIG AC/DC inverter welding machine of the latest generation. TIG AC/DC, TIG DC and TIG pulse, activArc® and spotArc®, MMA, MMA pulse, MMA cel, MMA cel pulse. Expert 3.0 control with 7” high-resolution graphic display (no touchscreen) with plain text display for selecting all parameters and control customisation. Temperature- and speed-controlled cooling fan – reduced contamination and less noise emissions as fan only runs when needed. Connection capability for remote control and function torch. Simple, tool-free reversal of the welding polarity. Earth fault monitoring (PE protection). Splash-proof as per IP23.

Version: Tetrix XQ 350 puls AC/DC W EX 5P
Setting range for welding current: 3 A - 350 A
Duty cycle 40 °C: 350 A / 100 %
Open circuit voltage: 82 V
Mains voltage: 3 x 400 V
Tolerances: -25 % up to +20 %
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 14.7 kVA
Cooling capacity at 1 l/min.: 1000 W
Pump pressure: 3.5 bar
Tank capacity: 8 l
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 1150 mm x 678 mm x 972 mm, 45.3 inch x 26.7 inch x 38.3 inch
Weight: 128.5 kg, 283.3 lbs
Standards: IEC 60974-1, -2, -3 and -10 CL.A

TIG EWM WELDING MACHINE TETRIX XQ 350 PULS DC W COMF3 5P 090-005670-00001

TIG DC inverter welding machine of the latest generation. TIG DC and TIG pulse, activArc® and spotArc®, MMA, MMA pulse, MMA cel, MMA cel pulse. Tried-and-tested Comfort 3.0 control with two easy-to-read 7-segment displays for simple and fast selection of the most important parameters. Temperature- and speed-controlled cooling fan – reduced contamination and less noise emissions as fan only runs when needed. Connection capability for remote control and function torch. Simple, tool-free reversal of the welding polarity. Earth fault monitoring (PE protection). Splash-proof as per IP23.

Version: Tetrix XQ 350 puls DC W COMF3 5P
Setting range for welding current: 3 A - 350 A
Duty cycle 40 °C: 350 A / 100 %
Open circuit voltage: 82 V
Mains voltage: 3 x 400 V
Tolerances: -25 % up to +20 %
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 14.3 kVA
Cooling capacity at 1 l/min.: 1000 W
Pump pressure: 3.5 bar
Tank capacity: 8 l
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 1150 mm x 678 mm x 972 mm, 45.3 inch x 26.7 inch x 38.3 inch
Weight: 126.5 kg, 278.9 lbs
Standards: IEC 60974-1, -2, -3 and -10 CL.A

MIG/MAG EWM WELDING MACHINE TITAN XQ 350 PULS DW 090-005560-00001

MIG/MAG inverter welding machine, pulse, with separate wire feeder. Perfect MIG/MAG weld seams even with long welding leads. Synergic control with one-knob operation. No controls on the welding machine. The machine is controlled exclusively via the selected wire feeder. No need to purchase additional characteristics – all characteristics for this machine type are included in the scope of delivery ex works. With innovative EWM Synergic characteristics rootArc® XQ/rootArc® puls XQ, coldArc® XQ/coldArc® puls XQ, forceArc® XQ/forceArc® puls XQ, wiredArc XQ/wiredArc puls XQ, pulse/superPuls and Positionweld. With Synergic characteristics for GMAW standard or pulsed welding for steel/CrNi/aluminium. Non Synergic operation for manual setting of welding parameters. Suitable for MMA welding, TIG welding and gouging. Individually configurable programmes for each welding task (JOB). Adjustable star

Version: Titan XQ 350 puls
Setting range for welding current: 5 A - 350 A
Duty cycle 40 °C: 350 A / 100 %
Open circuit voltage: 82 V
Mains voltage: 3 x 400 V
Tolerances: -25 % up to +20 %
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 19.3 kVA
Cooling capacity at 1 l/min.: 1000 W
Pump pressure: 3.5 bar
Tank capacity: 8 l
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 1150 mm x 678 mm x 972 mm, 45.3 inch x 26.7 inch x 38.3 inch
Weight: 128.5 kg, 283.3 lbs
Standards: IEC 60974-1, -2 and -10 CL.A

MIG/MAG EWM WELDING MACHINE TITAN XQ 350 PULS DW EX 090-005560-00002

MIG/MAG inverter welding machine including Expert XQ 2.0 control, pulse, with separate wire feeder. Perfect MIG/MAG weld seams even with long welding leads. Synergic control with one-knob operation. No need to purchase additional characteristics – all characteristics for this machine type are included in the scope of delivery ex works. With innovative EWM Synergic characteristics rootArc® XQ/rootArc® puls XQ, coldArc® XQ/coldArc® puls XQ, forceArc® XQ/forceArc® puls XQ, wiredArc XQ/wiredArc puls XQ, pulse/superPuls and Positionweld. With Synergic characteristics for GMAW standard or pulsed welding for steel/CrNi/aluminium. Non Synergic operation for manual setting of welding parameters. Suitable for MMA welding, TIG welding and gouging. Individually configurable programmes for each welding task (JOB). Adjustable start and end-crater functions. Infinitely adjustable arc dynamics (choke ef

Version: Titan XQ 350 puls
Setting range for welding current: 5 A - 350 A
Duty cycle 40 °C: 350 A / 100 %
Open circuit voltage: 82 V
Mains voltage: 3 x 400 V
Tolerances: -25 % up to +20 %
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 19.3 kVA
Cooling capacity at 1 l/min.: 1000 W
Pump pressure: 3.5 bar
Tank capacity: 8 l
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 1150 mm x 678 mm x 972 mm, 45.3 inch x 26.7 inch x 38.3 inch
Weight: 128.5 kg, 283.3 lbs
Standards: IEC 60974-1, -2 and -10 CL.A

EWM WELDING MACHINE TITAN XQ 400 PULS CW EX 090-005609-00005

MIG/MAG inverter welding machine, pulse, with integrated wire feeder. Intuitive user guidance on LCD panel and through plain text display of all welding parameters and functions. Perfect MIG/MAG weld seams even with long welding leads. Synergic control with one-knob operation. With innovative EWM Synergic characteristics rootArc® XQ/rootArc® puls XQ, coldArc® XQ/coldArc® puls XQ, forceArc® XQ/forceArc® puls XQ, wiredArc XQ/wiredArc puls XQ, pulse/superPuls and Positionweld. With Synergic characteristics for GMAW standard or pulsed welding for steel/CrNi/aluminium. Non Synergic operation for manual setting of welding parameters. Suitable for MMA welding, TIG welding and gouging. Individually configurable programmes for each welding task (JOB).

Version: Titan XQ 400 puls C W EX WIFI R1 5m
Setting range for welding current: 5 A - 400 A
Duty cycle 40 °C: 400 A / 60 %, 350 A / 80 %, 320 A / 100 %
Open circuit voltage: 82 V
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 23.8 kVA
Power consumption Pi: 34 W
Wire feed speed: 19.685 ipm - 984.253 ipm
Factory-installed roll equipment: 1,0-1,2 mm UNI / Steel
Spool diameter: D200/D300
Torch connection: Euro torch connector
Cooling capacity at 1 l/min.: 1500 W
Pump pressure: 3.5 bar
Tank capacity: 8 l
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 45.3 inch x 26.7 inch x 38.3 inch
Weight: 288.9 lbs
Standards: IEC 60974-1, -2, -5 and -10 CL.A

MIG/MAG EWM WELDING MACHINE TITAN XQ 400 PULS DW 090-005561-00001

MIG/MAG inverter welding machine, pulse, with separate wire feeder. Perfect MIG/MAG weld seams even with long welding leads. Synergic control with one-knob operation. No controls on the welding machine.. The machine is controlled exclusively via the selected wire feeder. No need to purchase additional characteristics – all characteristics for this machine type are included in the scope of delivery ex works. With innovative EWM Synergic characteristics rootArc® XQ/rootArc® puls XQ, coldArc® XQ/coldArc® puls XQ, forceArc® XQ/forceArc® puls XQ, wiredArc XQ/wiredArc puls XQ, pulse/superPuls and Positionweld. With Synergic characteristics for GMAW standard or pulsed welding for steel/CrNi/aluminium. Non Synergic operation for manual setting of welding parameters. Suitable for MMA welding, TIG welding and gouging. Individually configurable programmes for each welding task (JOB). Adjustable sta

Version: Titan XQ 400 puls
Setting range for welding current: 5 A - 400 A
Duty cycle 40 °C: 400 A / 80 %, 370 A / 100 %
Open circuit voltage: 82 V
Mains voltage: 3 x 400 V
Tolerances: -25 % up to +20 %
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 23.8 kVA
Wire feed speed: 0.5 m/min - 25 m/min, 19.685 ipm - 984.253 ipm
Cooling capacity at 1 l/min.: 1000 W
Pump pressure: 3.5 bar
Tank capacity: 8 l
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 1150 mm x 678 mm x 972 mm, 45.3 inch x 26.7 inch x 38.3 inch
Weight: 128.5 kg, 283.3 lbs
Standards: IEC 60974-1, -2 and -10 CL.A

EWM MICROPLASMA 25-2

Standard gas metering unit for plasma gas and shielding gas. Welding procedures and functions: • Plasma and TIG welding • Plasma and pulsed TIG welding • Plasma and pulsed TIG welding up to the kHz range allow a high welding speed with minimal heat input using a constricted arc • Plasma and TIG welding current adjustable in 0.1 A increments • Pilot arc current separately adjustable for start phase, welding phase, end-crater and welding break • Temperature, flow and pressure monitoring for the coolant circuit • Non-latched/latched operation • Spot welding/tack function (spotArc/spotmatic) • Adjustable up-slope and down-slope time • Spotmatic – reduce the time required for tacking by up to 50% (TIG only) • Adjustable gas pre- and post-flow time

Version: Microplasma 25-2
Setting range for welding current: 0.3 A - 20 A
Duty cycle 40 °C: 20 A / 100 %
Open circuit voltage: 95 V
Mains frequency: 50 Hz / 60 Hz
Recommended generator power: 2 kVA
Power consumption Pi: 30 W
Protection classification: IP23
EMC class: A
Dimensions (L x B x H): 24.6 inch x 14.8 inch x 20.9 inch
Weight: 79.8 lbs
Standards: IEC 60974-1, -3 and -10 CL.A

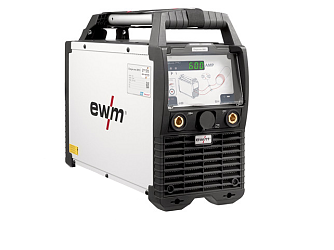

DEGAUSS 600 DEGAUSSING EWM MACHINE (091-002065-00502)

Degauss – automatic degaussing process before welding: dependable degaussing for better welding results through stable welding process without magnetic deflection, minimisation of finishing work. Activgauss (10–250 A) – degaussing during welding: avoids moving up of magnetic field during the welding process in case of very long and strongly magnetised components. Benefits: Quick connection to the component thanks to the practical load cable set Robust design suitable for construction site use Impact-resistant casing Inspected protection against splash water (IP-34s) Infinitely adjustable current for generation of the required opposing magnetic field Pole reversing switch, start/stop function Operation directly at the welding site Cost-efficient and high-quality results

Version: Degauss 600
Mains voltage (tolerances): -25 % - 16 A
Mains fuses (slow-blow): -25 % - 16 A
Degaussing current: 10 A - 600 A
COS Φ: 0.99
Efficiency: 90 %
Dimensions (L x B x H) x 539 mm x 210 mm x 415 mm
Dimensions (L x B x H) x 21.2 inch x 8.3 inch x 16.3 inch
Weight, machine: 25 kg, 55.1 lbs
EMC class: A
Insulation class: H
Protection class: IP34s

HIGH QUALITY WELDING HOLDERS FROM RENOWNED MANUFACTURERS (EWM, ROHRMAN)

We offer high-quality welding torches (including EWM and Rohrman brands) intended for MIG/MAG and TIG welding. The handles guarantee the use of the full efficiency of the power sources in the welding process. Advantages: • Well-fitting and carefully made handle elements, made of high-quality, durable materials • Resistance to extreme thermal and mechanical loads • Guaranteed protection of the welder against exposure to excessive heating of the handle • High weld quality • Exceptional durability and durability of the handles, reducing the degree of wear and reducing the costs of spare parts • Optimum matching of components to the specific welding task

Technical data adapted to individual orders.

Login

Search

Login

Menu EN

INDUSTRIAL SPRING (25-28.03.2025)

STOM-TOOL - BLECH & CUTTING - LASER - ROBOTICS - FIX, Welding, Expo-Surface, Fluid Power, Control-Stom, 3D Printing Days

TOMSYSTEM Sp. z o.o.

Description

Download

Products

Business sector

Brands
